Supervised & self-supervised model performance

import numpy as np
from tifffile import imread
import sys
import numpy as np

import pyclesperanto_prototype as cle
from stardist.matching import matching_dataset
sys.path.append("../..")

from utils import *
from plots import *
print("Used GPU: ", cle.get_device())
show_params()
#################
SAVE_PLOTS_AS_PNG = False
SAVE_PLOTS_AS_SVG = True

Used GPU:  <NVIDIA GeForce RTX 4070 Ti on Platform: NVIDIA CUDA (1 refs)>
Plot parameters (set in plots.py) :
- COLORMAP : ████████
- DPI : 200
- Data path : C:\Users\Cyril\Desktop\Code\CELLSEG_BENCHMARK
- Font size : 20
- Title font size : 25.0
- Label font size : 20.0

%load_ext autoreload
%autoreload 2

Data

Supervised models

data_path = DATA_PATH / "RESULTS/SUPERVISED_PERF_FIG/INFERENCE"
fold1_path = data_path / "fold1"
fold2_path = data_path / "fold2"
fold3_path = data_path / "fold3"

def get_fold_data(fold_path):
    return [imread(f) for f in fold_path.glob("*.tif") if "label" not in f.name], [imread(f) for f in fold_path.glob("*.tif") if "label" in f.name]

images = []
GT_labels = []
for fold in [fold1_path, fold2_path, fold3_path]:
    im, GT_lab = get_fold_data(fold)
    images.append(im[0])
    GT_labels.append(GT_lab[0])

fold_paths = [fold1_path, fold2_path, fold3_path]

def get_predictions(path):
    return [imread(f) for f in path.glob("*.tif")]
#################
swin_paths = [f / "Swin" for f in fold_paths]
segresnet_paths = [f / "SegResNet" for f in fold_paths]
#################
cellpose_paths = [f / "cellpose/tuned" for f in fold_paths]
stardist_paths = [f / "stardist/tuned" for f in fold_paths]
#################
cellpose_default_paths = [f / "cellpose/default" for f in fold_paths]
stardist_default_paths = [f / "stardist/default" for f in fold_paths]

swin_predictions = [get_predictions(p)[0] for p in swin_paths]
segresnet_predictions = [get_predictions(p)[0] for p in segresnet_paths]
cellpose_predictions = [get_predictions(p)[0] for p in cellpose_paths]
stardist_predictions = [get_predictions(p)[0] for p in stardist_paths]
cellpose_default_predictions = [get_predictions(p)[0] for p in cellpose_default_paths]
stardist_default_predictions = [get_predictions(p)[0] for p in stardist_default_paths]

Threshold-based segmentation

Check if a simple threshold-based segmentation yields competitive results.

import pyclesperanto_prototype as cle
threshold_only = [np.array(cle.threshold_otsu(p)) for p in images]
threshold_only = [np.array(cle.voronoi_otsu_labeling(p, spot_sigma=0.65, outline_sigma=0.65)) for p in threshold_only]

Unsupervised model

wnet_path = DATA_PATH / "RESULTS/WNET_RETRAIN/inference/WNet"
wnet_instance = [imread(str(f)) for f in wnet_path.glob("*.tif")]
wnet_instance.reverse()

Computations

For the choice of thresholds, see notebooks in the thresholds_opti/ folder.

swin_thresholded = [np.where(swin > 0.4, swin, 0) for swin in swin_predictions]
segresnet_thresholded = [np.where(segresnet > 0.3, segresnet, 0) for segresnet in segresnet_predictions]

swin_instance = []
segresnet_instance = []

for i in range(len(fold_paths)):
    swin_instance.append(np.array(
        cle.voronoi_otsu_labeling(swin_thresholded[i], spot_sigma=0.65, outline_sigma=0.65))
                         )
    segresnet_instance.append(np.array(
        cle.voronoi_otsu_labeling(segresnet_thresholded[i], spot_sigma=0.65, outline_sigma=0.65))
                              )

# from tifffile import imwrite
# for i in range(len(fold_paths)):
#     save_folder = data_path / f"fold{i+1}" / "processed"
#     save_folder.mkdir(exist_ok=True, parents=False)
#     imwrite(save_folder / "swin_instance.tif", swin_instance[i])
#     imwrite(save_folder / "segresnet_instance.tif", segresnet_instance[i])

Plots

taus = [0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9]

predictions = [
   stardist_predictions,
   stardist_default_predictions,
   cellpose_predictions,
   cellpose_default_predictions,
   segresnet_instance,
   swin_instance,
   wnet_instance,
   threshold_only,
   ]
names = [
    "StarDist",
    "StarDist - default",
    "Cellpose",
    "Cellpose - default",
    "SegResNet",
    "SwinUNetR",
    "WNet3D",
    "Otsu Threshold"
    ]

model_stats = []
model_ref_name = []
fold_ref = []

for j, fold in enumerate(fold_paths):
    print("Fold ", j+1)
    for i, p in enumerate(predictions):
        print(f"Validating on {names[i]}")
        # print(p[j].shape, GT_labels[j].shape)
        pred = p[j]
        if len(pred.shape) > 3:
            pred = pred.squeeze().astype(np.uint32)
        stats = [matching_dataset(
            GT_labels[j], pred, thresh=t, show_progress=False
            ) for t in taus]
        model_stats.append(stats)
        dice = dice_coeff(
            np.where(GT_labels[j] > 0, 1, 0),
            np.where(pred > 0, 1, 0)
        )
        print(f"Dice Coefficient: {dice}")
        for t in taus:
            model_ref_name.append(names[i])
            fold_ref.append(j+1)
        # uncomment for ALL plots :
        # plot_performance(taus, stats, name=names[i])
        print("*"*20)

Fold  1
Validating on StarDist
Dice Coefficient: 0.6993586695284486
********************
Validating on StarDist - default
Dice Coefficient: 0.39347722427914283
********************
Validating on Cellpose
Dice Coefficient: 0.7702901873444256
********************
Validating on Cellpose - default
Dice Coefficient: 0.5247862438123209
********************
Validating on SegResNet
Dice Coefficient: 0.7726461999842159
********************
Validating on SwinUNetR
Dice Coefficient: 0.8408113189509576
********************
Validating on WNet3D
Dice Coefficient: 0.5896556737502726
********************
Validating on Otsu Threshold
Dice Coefficient: 0.4892361595314461
********************
Fold  2
Validating on StarDist
Dice Coefficient: 0.7944590859420196
********************
Validating on StarDist - default
Dice Coefficient: 0.7251454473235356
********************
Validating on Cellpose
Dice Coefficient: 0.8287320218217887
********************
Validating on Cellpose - default
Dice Coefficient: 0.5633677060172622
********************
Validating on SegResNet
Dice Coefficient: 0.8013458950201884
********************
Validating on SwinUNetR
Dice Coefficient: 0.7887976385316811
********************
Validating on WNet3D
Dice Coefficient: 0.8087545264446371
********************
Validating on Otsu Threshold
Dice Coefficient: 0.665591153771321
********************
Fold  3
Validating on StarDist
Dice Coefficient: 0.7584470232902522
********************
Validating on StarDist - default
Dice Coefficient: 0.5047402543506129
********************
Validating on Cellpose
Dice Coefficient: 0.7932470010023605
********************
Validating on Cellpose - default
Dice Coefficient: 0.5596045059982444
********************
Validating on SegResNet
Dice Coefficient: 0.8472361720498317
********************
Validating on SwinUNetR
Dice Coefficient: 0.8554751436182162
********************
Validating on WNet3D
Dice Coefficient: 0.8113536341409202
********************
Validating on Otsu Threshold
Dice Coefficient: 0.7887478958953774
********************

dfs = [dataset_matching_stats_to_df(s) for s in model_stats]
df = pd.concat(dfs)
df["Model"] = model_ref_name
df["Fold"] = fold_ref
df["thresh"] = df.index
df.set_index(["Model", "Fold", "thresh"], inplace=True)
df

			criterion	fp	tp	fn	precision	recall	accuracy	f1	n_true	n_pred	mean_true_score	mean_matched_score	panoptic_quality	by_image
Model	Fold	thresh
StarDist	1	0.1	iou	1395	2973	412	0.680632	0.878287	0.621967	0.766929	3385	4368	0.537485	0.611970	0.469338	False
		0.2	iou	1405	2963	422	0.678342	0.875332	0.618580	0.764349	3385	4368	0.537034	0.613520	0.468944	False
		0.3	iou	1482	2886	499	0.660714	0.852585	0.592973	0.744486	3385	4368	0.531009	0.622822	0.463682	False
		0.4	iou	1727	2641	744	0.604625	0.780207	0.516628	0.681285	3385	4368	0.506039	0.648597	0.441879	False
		0.5	iou	2127	2241	1144	0.513049	0.662038	0.406567	0.578099	3385	4368	0.454747	0.686888	0.397089	False
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
Otsu Threshold	3	0.5	iou	1357	4209	2700	0.756198	0.609205	0.509194	0.674790	6909	5566	0.471521	0.773993	0.522282	False
		0.6	iou	2077	3489	3420	0.626842	0.504993	0.388271	0.559359	6909	5566	0.416410	0.824585	0.461239	False
		0.7	iou	2758	2808	4101	0.504492	0.406426	0.290473	0.450180	6909	5566	0.352801	0.868057	0.390782	False
		0.8	iou	3521	2045	4864	0.367409	0.295991	0.196069	0.327856	6909	5566	0.270493	0.913856	0.299613	False
		0.9	iou	4453	1113	5796	0.199964	0.161094	0.097958	0.178437	6909	5566	0.156777	0.973200	0.173655	False

216 rows × 14 columns

df_supervised = df.copy()
df_supervised = df.loc[["StarDist", "StarDist - default", "Cellpose", "Cellpose - default", "SegResNet", "SwinUNetR"]]

temp_cmap = COLORMAP.copy()
temp_cmap.insert(2, COLORMAP[1])
temp_cmap.insert(1, COLORMAP[0])
temp_cmap[2], _ = get_shades(temp_cmap[3])
temp_cmap[0], _ = get_shades(temp_cmap[1])
EXPANDED_COLORMAP = temp_cmap

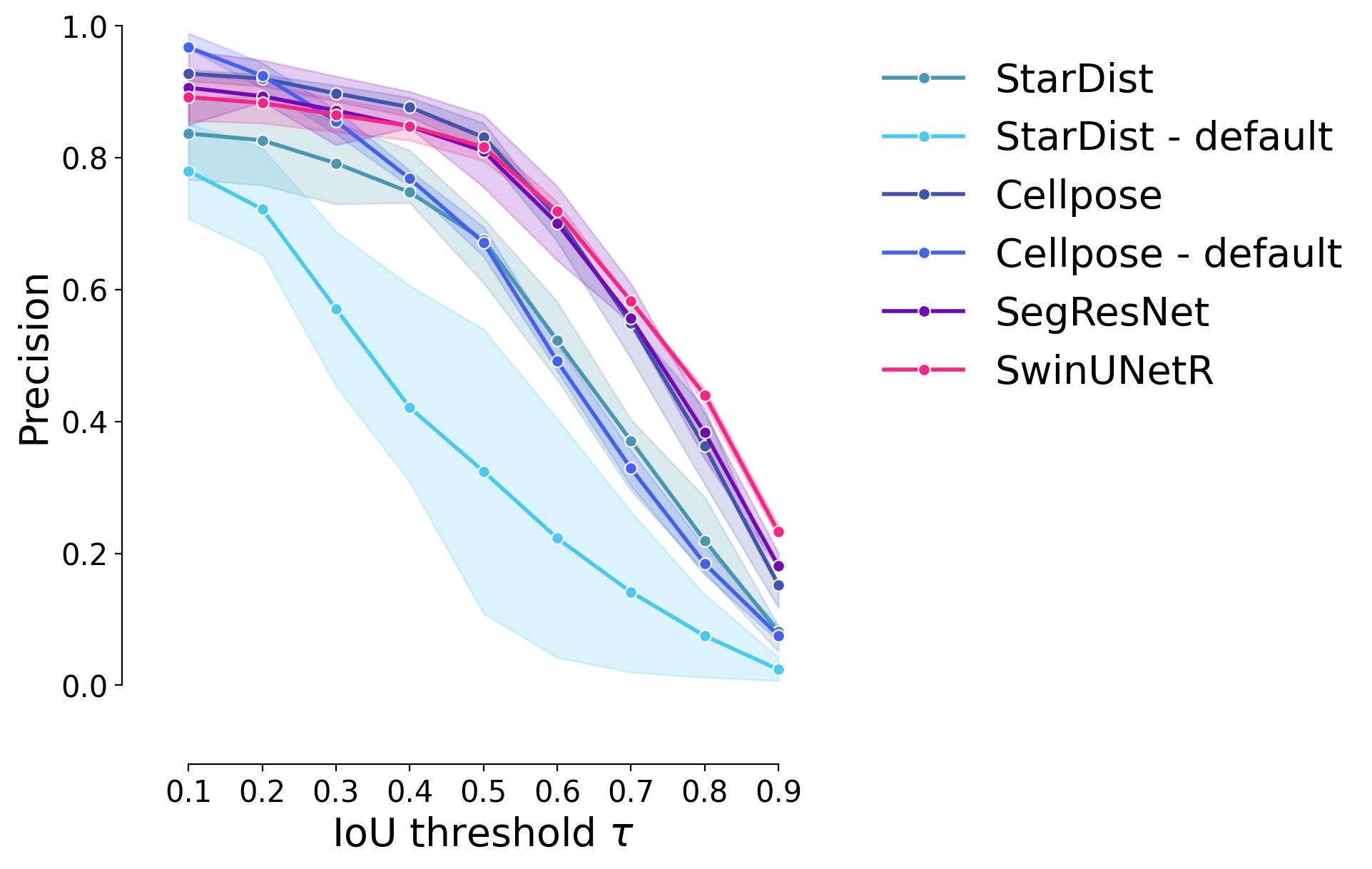

Precision

plot_stat_comparison_fold(df_supervised, stat="precision", colormap=EXPANDED_COLORMAP)
if SAVE_PLOTS_AS_PNG:
    plt.savefig("precision_comparison_fold.png", bbox_inches = "tight")
if SAVE_PLOTS_AS_SVG:
    plt.savefig("precision_comparison_fold.svg", bbox_inches = "tight")

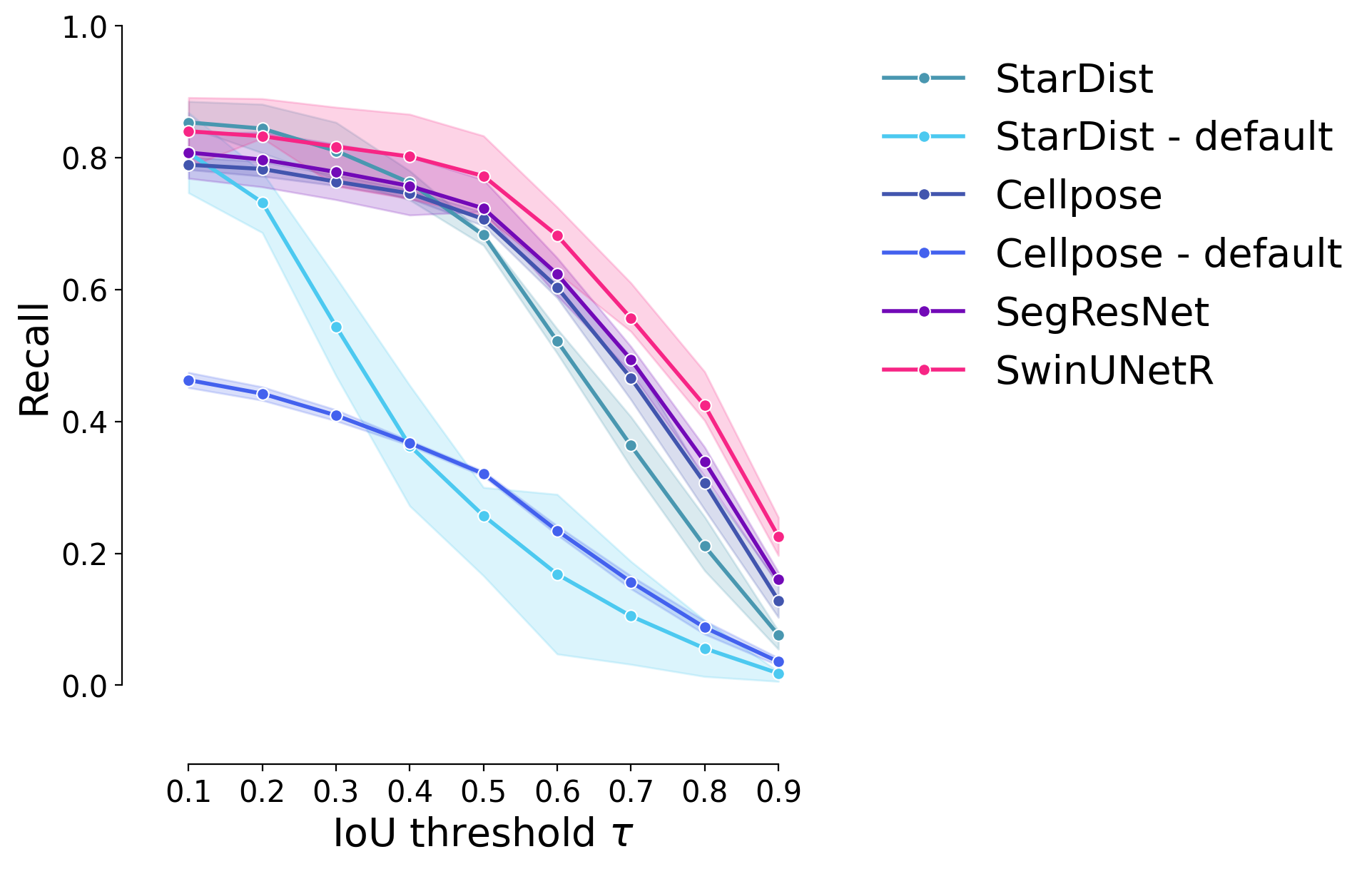

Recall

plot_stat_comparison_fold(df_supervised, stat="recall", colormap=EXPANDED_COLORMAP)
if SAVE_PLOTS_AS_PNG:
    plt.savefig("recall_comparison_fold.png", bbox_inches = "tight")
if SAVE_PLOTS_AS_SVG:
    plt.savefig("recall_comparison_fold.svg", bbox_inches = "tight")

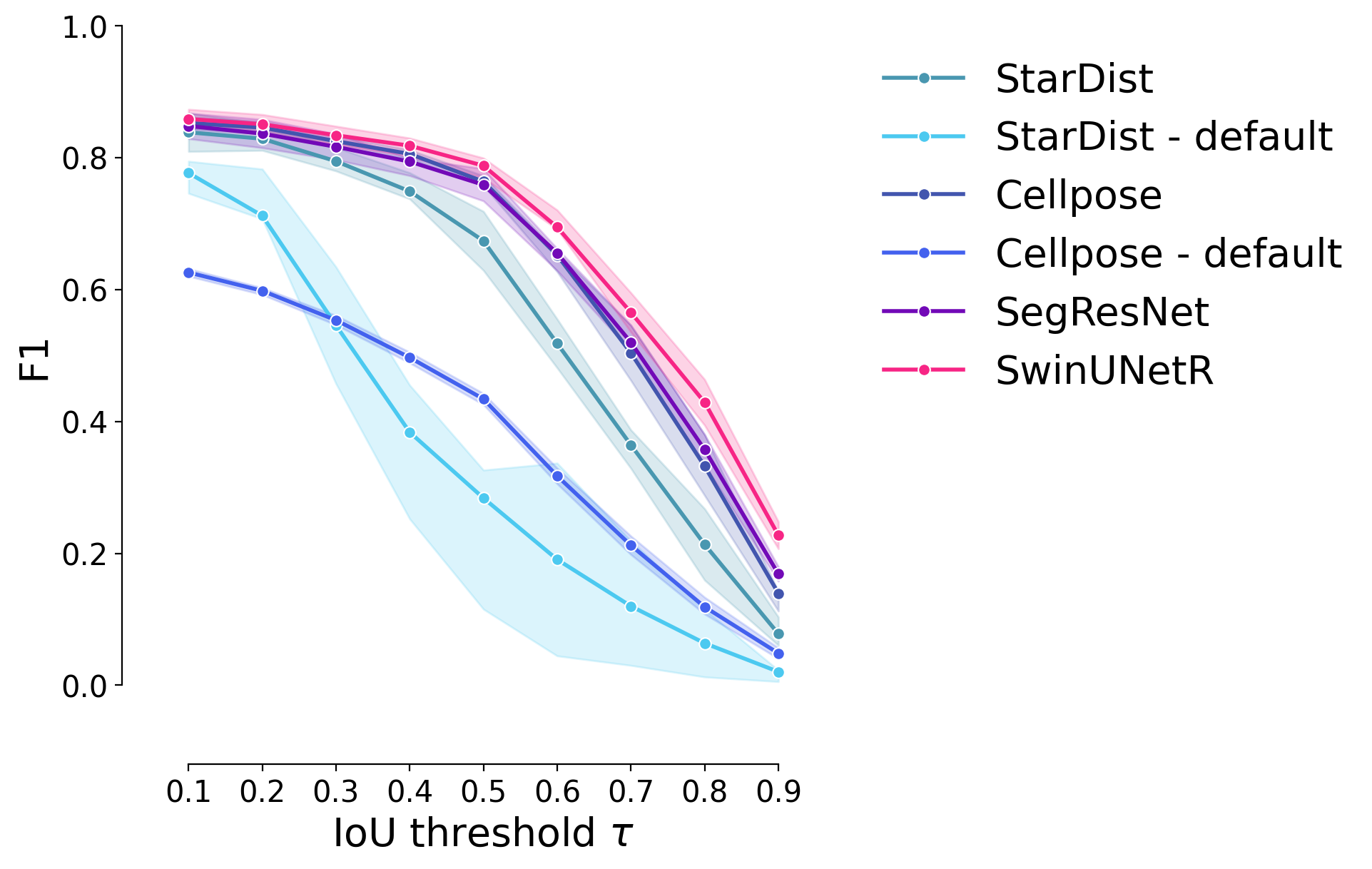

F1 Score

plot_stat_comparison_fold(df_supervised, stat="f1", colormap=EXPANDED_COLORMAP)
if SAVE_PLOTS_AS_PNG:
    plt.savefig("f1_comparison_fold.png", bbox_inches = "tight")
if SAVE_PLOTS_AS_SVG:
    plt.savefig("f1_comparison_fold.svg", bbox_inches = "tight")

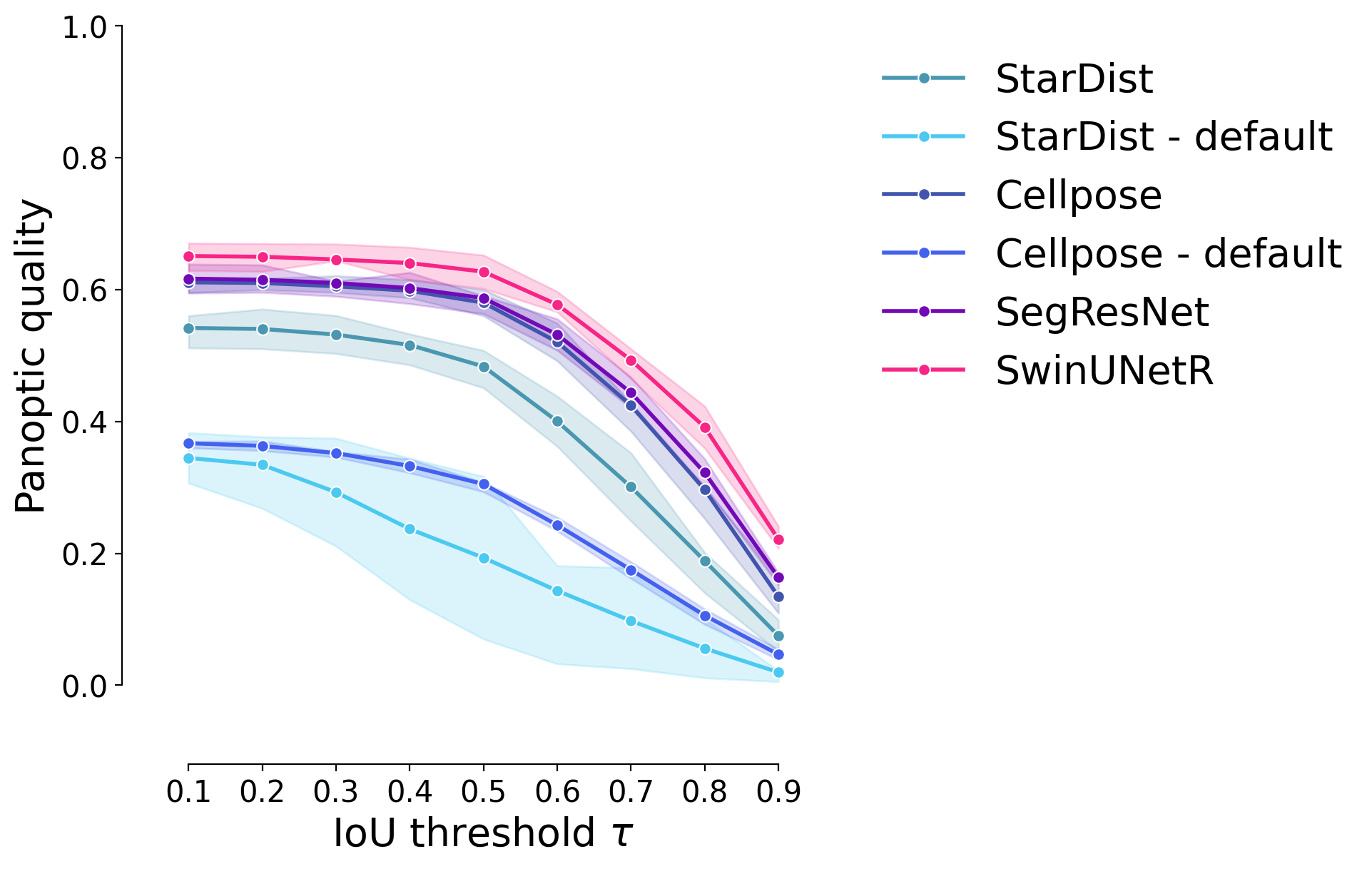

Panoptic Quality

plot_stat_comparison_fold(df_supervised, stat="panoptic_quality", colormap=EXPANDED_COLORMAP)
if SAVE_PLOTS_AS_PNG:
    plt.savefig("panoptic_quality_comparison_fold.png", bbox_inches = "tight")
if SAVE_PLOTS_AS_SVG:
    plt.savefig("panoptic_quality_comparison_fold.svg", bbox_inches = "tight")

WNet3D - No artifacts

# evaluate stats for WNet3D on an extra fold, where visual is restricted to [50:, :, :]
stats = [matching_dataset(
    GT_labels[0][:50,:,:], wnet_instance[0][:50,:,:], thresh=t, show_progress=False
    ) for t in taus]
partial_df = dataset_matching_stats_to_df(stats)
partial_df["Model"] = "WNet3D - No artifacts"
partial_df["Fold"] = 1
# copy rows from WNet entries for fold 2/3
rows_fold2 = df.loc[("WNet3D", 2)].copy()
rows_fold3 = df.loc[("WNet3D", 3)].copy()
rows_fold2["Model"] = "WNet3D - No artifacts"
rows_fold2["Fold"] = 2
rows_fold3["Fold"] = 3
rows_fold3["Model"] = "WNet3D - No artifacts"
partial_df = pd.concat([partial_df, rows_fold2, rows_fold3])
partial_df.set_index(["Model", "Fold", partial_df.index], inplace=True)
df = pd.concat([df, partial_df])

1321758596.py (9): indexing past lexsort depth may impact performance.
1321758596.py (10): indexing past lexsort depth may impact performance.

df

			criterion	fp	tp	fn	precision	recall	accuracy	f1	n_true	n_pred	mean_true_score	mean_matched_score	panoptic_quality	by_image
Model	Fold	thresh
StarDist	1	0.1	iou	1395	2973	412	0.680632	0.878287	0.621967	0.766929	3385	4368	0.537485	0.611970	0.469338	False
		0.2	iou	1405	2963	422	0.678342	0.875332	0.618580	0.764349	3385	4368	0.537034	0.613520	0.468944	False
		0.3	iou	1482	2886	499	0.660714	0.852585	0.592973	0.744486	3385	4368	0.531009	0.622822	0.463682	False
		0.4	iou	1727	2641	744	0.604625	0.780207	0.516628	0.681285	3385	4368	0.506039	0.648597	0.441879	False
		0.5	iou	2127	2241	1144	0.513049	0.662038	0.406567	0.578099	3385	4368	0.454747	0.686888	0.397089	False
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
WNet3D - No artifacts	3	0.5	iou	974	4656	2253	0.826998	0.673904	0.590638	0.742643	6909	5630	0.518749	0.769767	0.571662	False
		0.6	iou	1640	3990	2919	0.708703	0.577508	0.466721	0.636414	6909	5630	0.467688	0.809838	0.515393	False
		0.7	iou	2400	3230	3679	0.573712	0.467506	0.346976	0.515193	6909	5630	0.396466	0.848045	0.436907	False
		0.8	iou	3397	2233	4676	0.396625	0.323202	0.216670	0.356169	6909	5630	0.288912	0.893907	0.318382	False
		0.9	iou	4704	926	5983	0.164476	0.134028	0.079738	0.147699	6909	5630	0.129802	0.968467	0.143042	False

243 rows × 14 columns

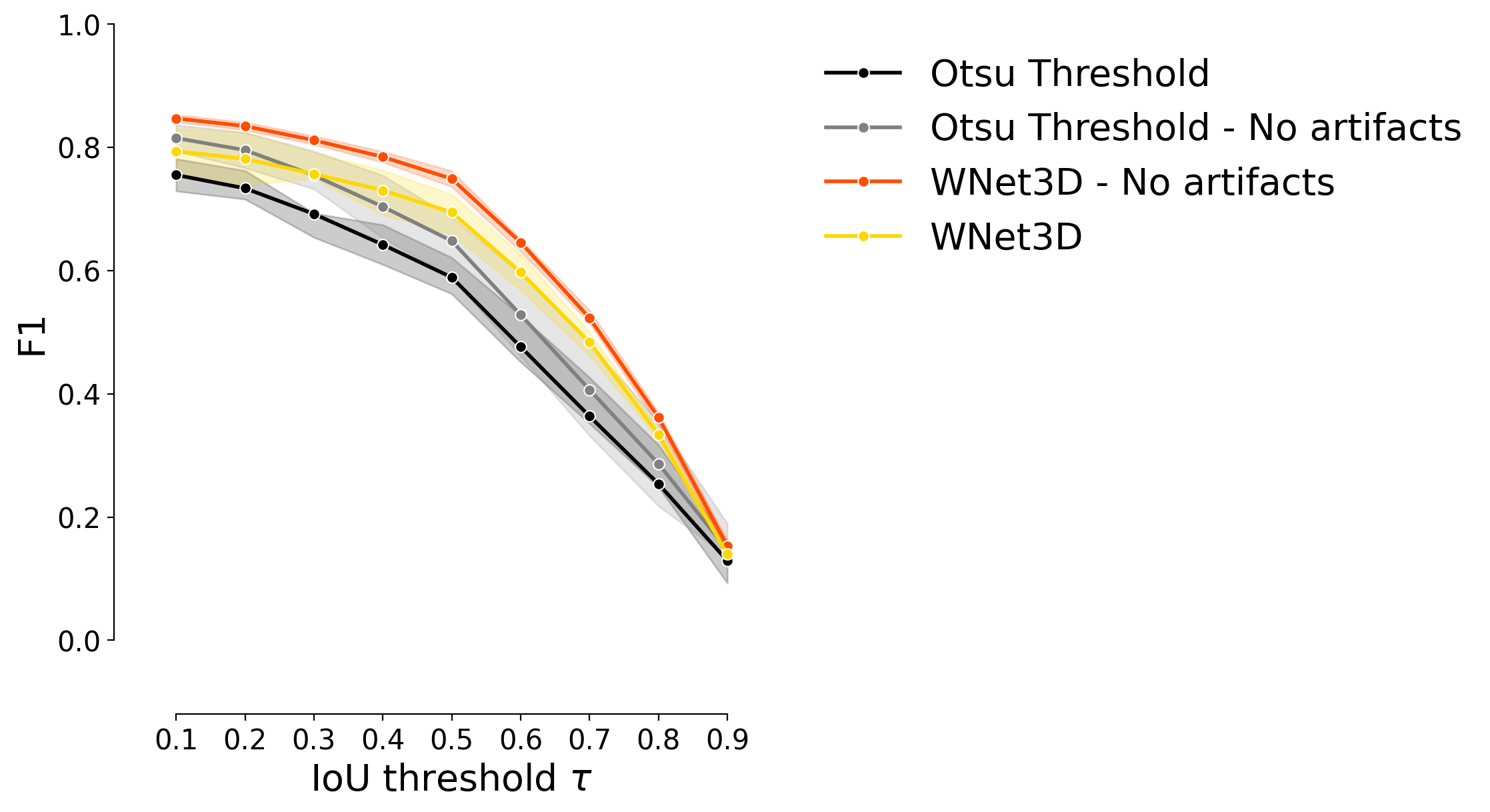

Otsu Threshold - No artifacts

# evaluate stats for WNet3D on an extra fold, where visual is restricted to [50:, :, :]
stats = [matching_dataset(
    GT_labels[0][:50,:,:], threshold_only[0][:50,:,:], thresh=t, show_progress=False
    ) for t in taus]
partial_df = dataset_matching_stats_to_df(stats)
partial_df["Model"] = "Otsu Threshold - No artifacts"
partial_df["Fold"] = 1

rows_fold2 = df.loc[("Otsu Threshold", 2)].copy()
rows_fold3 = df.loc[("Otsu Threshold", 3)].copy()
rows_fold2["Model"] = "Otsu Threshold - No artifacts"
rows_fold2["Fold"] = 2
rows_fold3["Fold"] = 3
rows_fold3["Model"] = "Otsu Threshold - No artifacts"
partial_df = pd.concat([partial_df, rows_fold2, rows_fold3])
partial_df.set_index(["Model", "Fold", partial_df.index], inplace=True)
df = pd.concat([df, partial_df])

2306530423.py (9): indexing past lexsort depth may impact performance.
2306530423.py (10): indexing past lexsort depth may impact performance.

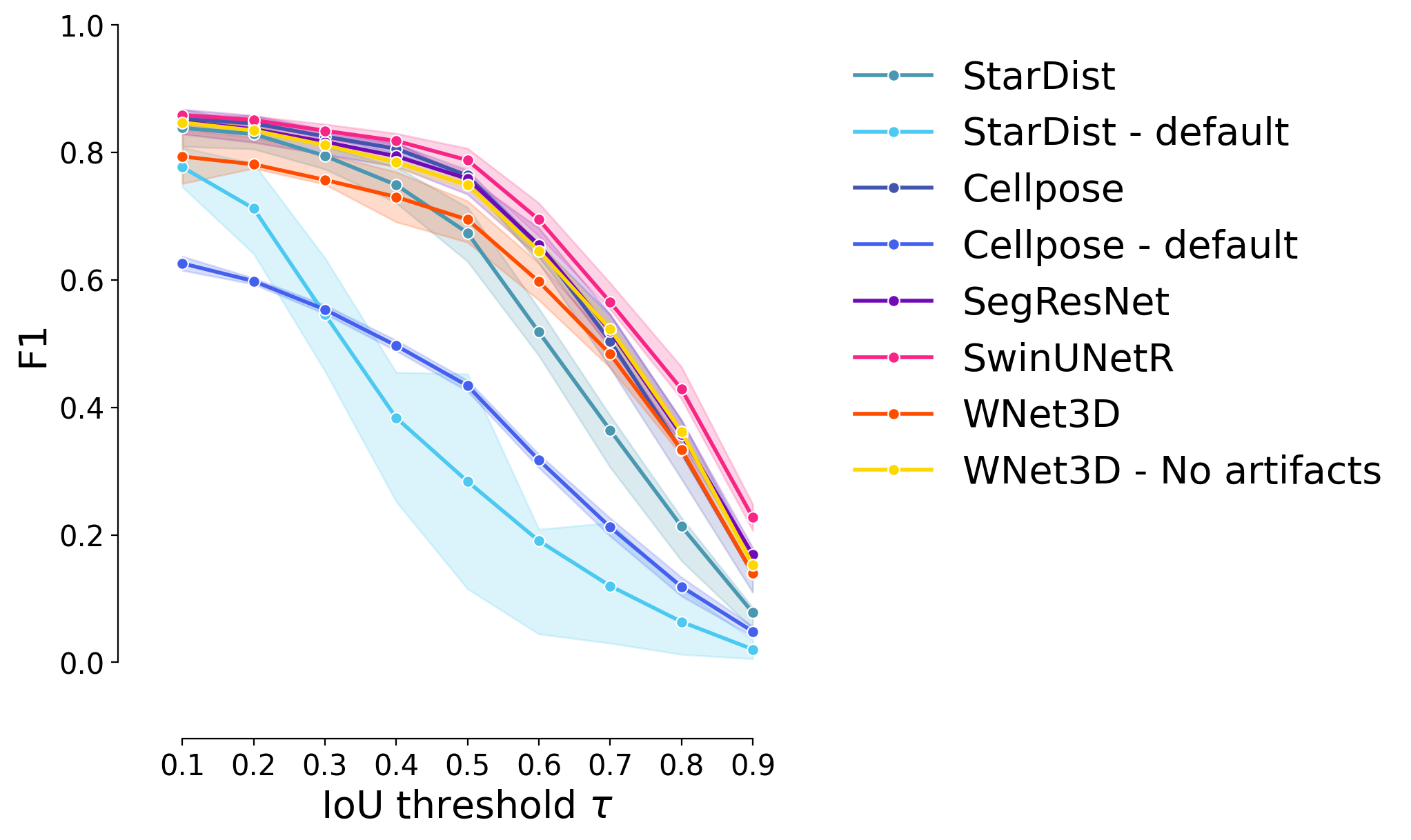

plot_stat_comparison_fold(
    df.loc[["StarDist", "StarDist - default", "Cellpose", "Cellpose - default", "SegResNet", "SwinUNetR", "WNet3D", "WNet3D - No artifacts"]],
    stat="f1", colormap=EXPANDED_COLORMAP)

df_no_learning = df.loc[["Otsu Threshold", "Otsu Threshold - No artifacts", "WNet3D - No artifacts", "WNet3D"]]

VO_CMAP = COLORMAP.copy()
VO_CMAP = ["black", "gray"] + VO_CMAP[4:]

plot_stat_comparison_fold(df_no_learning, stat="f1", colormap=VO_CMAP)
if SAVE_PLOTS_AS_PNG:
    plt.savefig("f1_comparison_fold_no_learning.png", bbox_inches = "tight")
if SAVE_PLOTS_AS_SVG:
    plt.savefig("f1_comparison_fold_no_learning.svg", bbox_inches = "tight")

Statistical tests (outdated & unused)

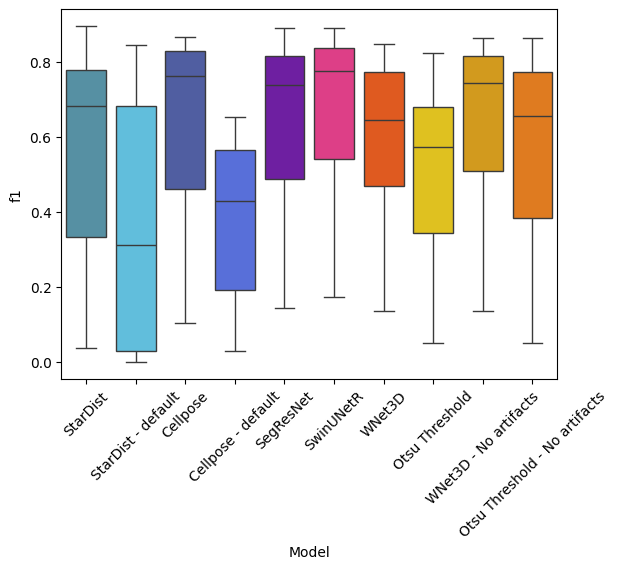

Boxplot of model performance across all thresholds

sns.boxplot(data=df, x="Model", y="f1", palette=EXPANDED_COLORMAP)
plt.xticks(rotation=45)
plt.show()

27598755.py (1):

Passing `palette` without assigning `hue` is deprecated and will be removed in v0.14.0. Assign the `x` variable to `hue` and set `legend=False` for the same effect.

from scipy.stats import f_oneway, kruskal

models_f1_means = df.groupby("Model").f1.mean()

f1_starDist = df.loc["StarDist"].f1
f1_cellpose = df.loc["Cellpose"].f1
f1_segresnet = df.loc["SegResNet"].f1
f1_swin = df.loc["SwinUNetR"].f1
f1_wnet = df.loc["WNet3D"].f1
f1_wnet_partial = df.loc["WNet3D - No artifacts"].f1

anova_test = f_oneway(
    # f1_starDist,
    f1_cellpose,
    f1_segresnet,
    f1_swin,
    f1_wnet,
    f1_wnet_partial
    )
print("Kruskal test: ", anova_test)

Kruskal test:  F_onewayResult(statistic=0.4431995081645192, pvalue=0.777181391641984)

# Significant difference between the models?
kruskal_test = kruskal(
    f1_starDist,
    f1_cellpose,
    f1_segresnet,
    f1_swin,
    f1_wnet,
    f1_wnet_partial
    )
print("Comparisons of F1 scores between all models:")
print("- StarDist\n- Cellpose\n- SegResNet\n- SwinUNetR\n- WNet3D\n- WNet3D - No artifacts")
print("Kruskal-Wallis test: ", kruskal_test)

Comparisons of F1 scores between all models:
- StarDist
- Cellpose
- SegResNet
- SwinUNetR
- WNet3D
- WNet3D - No artifacts
Kruskal-Wallis test:  KruskalResult(statistic=4.824842539418781, pvalue=0.4376286539608427)

# Best models - significant difference between them?
kruskal_test = kruskal(
    # f1_starDist,
    f1_cellpose,
    f1_segresnet,
    f1_swin,
    f1_wnet,
    f1_wnet_partial
    )
print("Comparisons of F1 scores between the best models:")
print("- Cellpose\n- SegResNet\n- SwinUNetR\n- WNet3D\n- WNet3D - No artifacts")
print("Kruskal-Wallis test: ", kruskal_test)

Comparisons of F1 scores between the best models:
- Cellpose
- SegResNet
- SwinUNetR
- WNet3D
- WNet3D - No artifacts
Kruskal-Wallis test:  KruskalResult(statistic=3.5792905060017897, pvalue=0.46592490089849237)

# Best supervised models - significant difference between them?
kruskal_test = kruskal(
    f1_cellpose,
    f1_segresnet,
    f1_swin
    )
print("Comparisons of F1 scores between the best supervised models:")
print("- Cellpose\n- SegResNet\n- SwinUNetR")
print("Kruskal-Wallis test: ", kruskal_test)

Comparisons of F1 scores between the best supervised models:
- Cellpose
- SegResNet
- SwinUNetR
Kruskal-Wallis test:  KruskalResult(statistic=0.6194921208470987, pvalue=0.7336332310839804)
